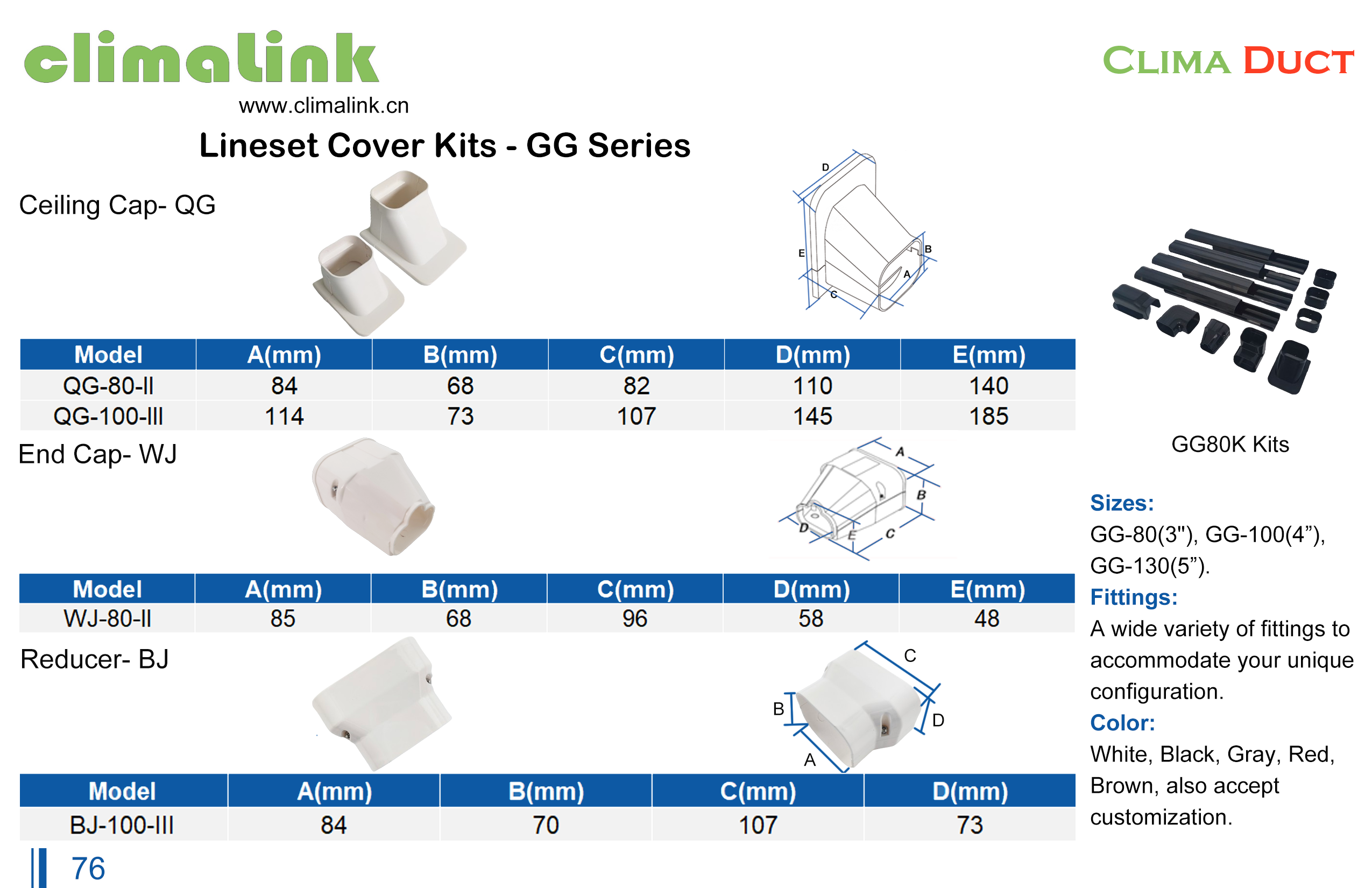

BJ-100 - PVC reducer air conditioner pipe cover

PVC end cap air conditioner pipe cover
•Clean Cut - Covers and hides unsightly refrigeration pipes on your external wall. Keep piping organized, clear up external wall for a professional installation appearance.
•Durable - Ultra durable PVC plastic material with neutral light color (can be customized). Protect and hide line set, drain hose and power from all whether elements.
•Compatible - Can be added to any previous and existing installation with ease. Also fits for many previous and existing installations easily. Printable PVC material.
•Parts included – Straight, hose, wall cover, flat elbow, elbow, coupling.
•Passed UL94-Horizontal Burning test，ASTMG154-UV Resistance test, ASTM D648-Deflection Temperature under Load test.

Product Category：

GG Series & GD Series

Hotline：

+86 13804575040

E-mail：

cristinwei@climalink.cn

Related products

Product message

Product Detailed

Description:
After a mini split is installed, the line-set is often left hanging down the outside wall. The outside of your home is not looking good and over time the sun will damage your line-set.
Now you need this professional cover kit to solve the problem.
Covering the line-set makes it looks nice without a bunch of wires and lines hanging down a wall and protects it from the weather or any damage.
Features:
1. Durable finished PVC protects lines and wiring from extreme temperature or weather conditions.
2. Easy installation for any existing or new setup.
3. Premium PVC can be painted in the color of your choosing.
4. Combine components as your need.
5. Size:
Model A * B * C * D * E
GG 3“/4"/5"/6" * 2.5”/2.7"/3.5"/3.5" * 6.6ft/6.6ft/6.6ft/6.6ft * / * /
ZL 3.5"/4.3"/5.5"/6.2" * 2.7"/2.9"/3.9"/3.8" * 2"/2"/3.1"/3.1" * / * /
RG 2ft/2.4ft/3ft * 2.5"/2.5"/3.5" * 2.9"/3.6"/5.1" * / * /
CZ 3.1"/4.3"/5.5"/6.1" * 2.7"/3"/3.9"/3.9" * 3.9"/4.6"/6.7"/6.3" * / * /
PW 3.4"/4.3"/5.6"/6.2" * 2.8"/2.9"/3.9"/3.9" * 4.5"/5.6"/6.8"/7.4" * / * /
GQ 3.1"/4.2"/5.3"/6.1" * 3.3“/3.3"/4.9"/4.8" * 4.3”/5.3"/6.6"/7.8" * 8.3"/8.4"/9.3"/9.6“* /
QG 1.2"/1.5" * 2.4"/2.7" * 2.9"/4.3" * 5.5"/5.1" * 4.3"/5.5"
WJ 3.4" * 3.5" * 3.8" * 2.3" * 1.9"
